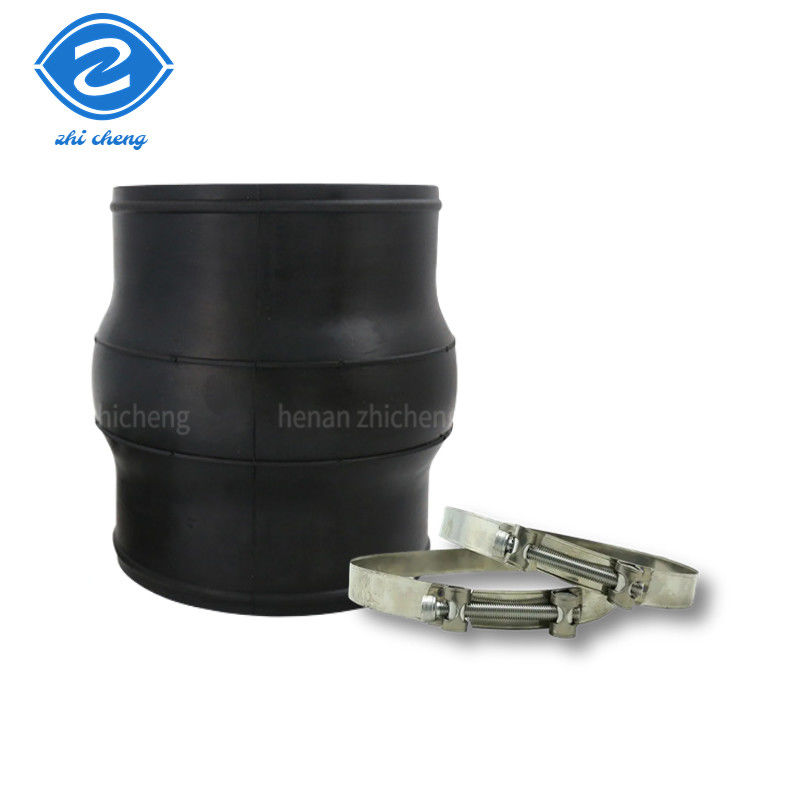

Anti Vibration DIN 304 Clip-On Rubber Flexible Bellows Rubber Flex Joint

Product Details

Place of Origin: Henan, China

Brand Name: Zhicheng

Model Number: ZCF

Payment & Shipping Terms

Minimum Order Quantity: 10 pieces

Price: $16.30/pieces 10-99 pieces

Packaging Details: Inner: plastic film packing.
Outer: wooden case packing.

Supply Ability: 10000 Piece/Pieces per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    flexible bellows, rubber flex joint, rubber flexible bellows


Warranty:	1 Year	Customized Support:	ODM, OEM
Technics:	Forged	Connection:	Flange, Flanged
Shape:	Equal	Head Code:	Round
Product Name:	304 Clamped Rubber Expansion Joint	Nominal Diameter:	DN32-DN1200mm
Working Pressure:	PN6~PN40	Working Temperature:	-15~80℃
Applicable Media:	Water, Oil, Air, Sewage,etc	Material Of Flange:	Carbon Steel
Packing:	Wooden Case	Standard:	DIN Standard
MOQ:	1 Piece	Port:	Tianjin Port, Qingdao Port Or Negotiable

Warranty:	1 Year
Customized Support:	ODM, OEM
Technics:	Forged
Connection:	Flange, Flanged
Shape:	Equal
Head Code:	Round
Product Name:	304 Clamped Rubber Expansion Joint
Nominal Diameter:	DN32-DN1200mm
Working Pressure:	PN6~PN40
Working Temperature:	-15~80℃
Applicable Media:	Water, Oil, Air, Sewage,etc
Material Of Flange:	Carbon Steel
Packing:	Wooden Case
Standard:	DIN Standard
MOQ:	1 Piece
Port:	Tianjin Port, Qingdao Port Or Negotiable

Description

Anti Vibration DIN 304 Clip-On Rubber Flexible Bellows Rubber Flex Joint

Anti-Vibration DIN Standard 304 Clip-On Rubber Expansion Joint with Customized Support

Product Description

Specification

Name of product	ANSI DN100 stainless steel flanged compensator bellow compens flexible rubber expans joint
Structure of product	Inner and outer rubber,nylon cord fabric,steel wire and flange
Size	DN15-DN4000
Material of rubber	EPDM, NR, NBR,PTFE, FPM,etc
Material of flange	SS304,SS316,carbon steel, ductile iron,etc
Standard of flange	DIN, BS, ANSI, JIS,ISO,etc
Product classification	Single sphere , Double sphere, Union type,etc

Product Paramenters

Packing & Delivery

Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.

Company Profile

Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete, with a monthly output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system certification and has a strict quality control system, standard
production process and standardized delivery inspection program to ensure that the delivered products meet the technical
requirements.
The main products are: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters

Advantages

Production process

For installation, the two nozzles of the clamped rubber expansion joint can be placed on the connected pipe and the rubber expansion joint is fixed to the pipe by means of the clamp... When dismantling the rubber expansion joint, it is only necessary to loosen the clamps. Thus, the purpose of compensating for the displacement of the pipeline due to thermal expansion and contraction and the displacement of water is achieved. In addition to the characteristics of high strength, low noise, good fire resistance, long service life, flexibility and good seismic performance of the connection, the clamp-connected rubber expansion joint connection also has the characteristics of simultaneous construction and high pipeline utilisation.

FAQ

Q: Are you a trading company or a manufacturer? A: We are a manufacturer of rubber expansion joints, bellows expansion joints, metal hoses, breakaway joints, trimmer joints, flange adapters and flanges with over 30 years experience. Q: Do you have a catalogue? A: Yes, we do. Please let me know your email or instant messenger and we will send you our catalogue. Q: Can you provide drawings and technical information? A: Yes, our specialist technical department will design and provide drawings and technical information. Q: Do you offer samples? Are they free of charge or do you charge for them? A: Yes, we can provide samples for free, but the shipping cost is borne by the customer. Q: Can the products be manufactured according to the customer's requirements? A: Yes, the above specifications are standard and we can design and manufacture as required. Please write your requirements below and contact us for more details!
