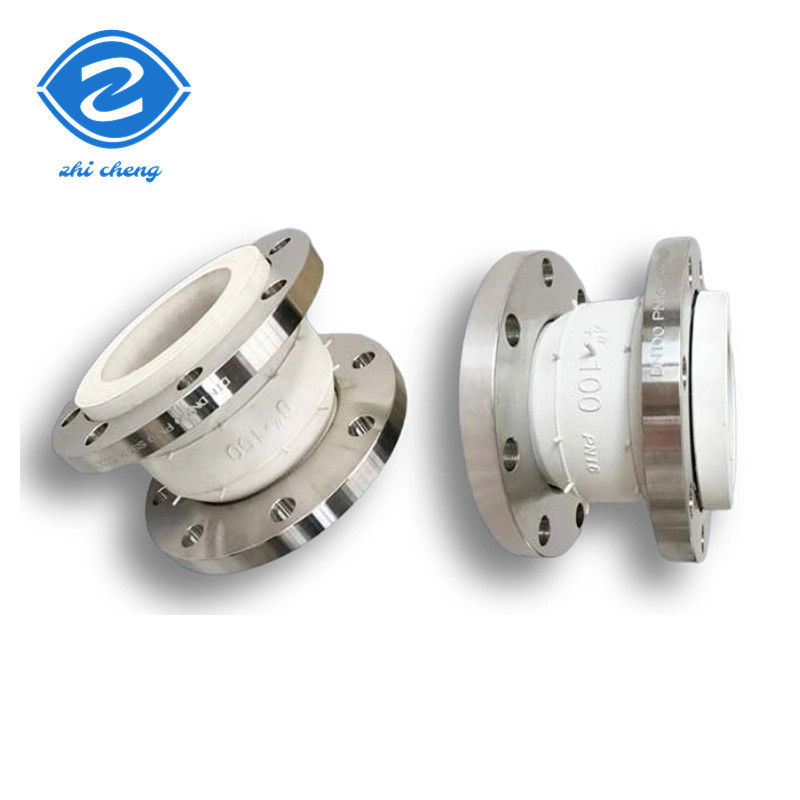

SS304 Pump General Rubber Expansion Joints Flange Epdm Seismic Compensator DN25-DN3000

Product Details

Place of Origin: Henan, China

Brand Name: ZHICHENG

Certification: ISO

Model Number: ZCF

Payment & Shipping Terms

Price: $13.20/sets 1-99 sets

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            pump rubber expansion joint DN25-DN3000, general rubber expansion joints, expansion joint rubber


Warranty:	1year	Customized Support:	ODM, OEM
Technics:	Forged/vulcanization	Connection:	Flange
Shape:	Equal	Head Code:	Round
Product Name:	Hot Selling Single Sphere Rubber Expansion Joint	Working Pressure:	PN6-PN40
Working Temperature:	-15℃-80℃(in Special -30℃-150℃)	Applicable Media:	Air,water,sewage,acid,oil,etc.
Nominal Diameter:	DN25-DN3000	Flange Material:	Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:	NR,EPDM,NBR Etc.	Flange Standard:	DIN,ANSI,JIS Etc.
Factory Address:	Henan, China

Warranty:	1year
Customized Support:	ODM, OEM
Technics:	Forged/vulcanization
Connection:	Flange
Shape:	Equal
Head Code:	Round
Product Name:	Hot Selling Single Sphere Rubber Expansion Joint
Working Pressure:	PN6-PN40
Working Temperature:	-15℃-80℃(in Special -30℃-150℃)
Applicable Media:	Air,water,sewage,acid,oil,etc.
Nominal Diameter:	DN25-DN3000
Flange Material:	Carbon Steel Galvanized,Stainless Steel Etc.
Rubber Material:	NR,EPDM,NBR Etc.
Flange Standard:	DIN,ANSI,JIS Etc.
Factory Address:	Henan, China

Description

SS304 Pump General Rubber Expansion Joints Flange Epdm Seismic Compensator DN25-DN3000

SS304 Flange Connection Epdm Seismic Compensator with Nominal Diameter DN25-DN3000

Company Profile

Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Our mission: on product details, improve innovation, and meet user needs.
Our value: integrity and standardization, cooperation and win-win
Main products: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters ,fabric expansion joints, bellows

Product Description

White food grade rubber expansion joints

Food-grade rubber joints are mainly used in food pipelines, so the material of food-grade rubber soft joints must be non-toxic and odorless.
All the rubber joints produced by our company are made of imported silicone collagen materials. Using scientific production technology, the batch method is used to produce raw rubber, aiming at the high tear resistance and high transparency of gas-phase rubber, the super-high and low hardness of mixtures, and their functionality. High-quality silica gel tube produced by mixing rubber and other characteristics, this product has a wide range of adaptability.

Specification

Main connecting dimension of rubber joint
Nominal diameter(DN)			Length	Axial displacement			Horizontal displacement	Deflexion angle
mm	inch	Extension(mm)	Compression(mm)	mm	mm	(a1+a2)°
32	1 and 1/4	95	6	9	9	15°
40	1 and 1/2	95	6	10	9	15°
50	2	105	7	10	10	15°
65	2 and 1/2	115	7	13	11	15°
80	3	135	8	15	12	15°
100	4	150	10	19	13	15°
125	5	165	12	19	13	15°
150	6	180	12	20	14	15°
200	8	210	16	25	22	15°
250	10	230	16	25	22	15°
300	12	245	16	25	22	15°
350	14	255	16	25	22	15°
400	16	255	16	25	22	15°
450	18	255	16	25	22	15°
500	20	255	16	25	22	15°
600	24	260	16	25	22	15°
700	28	260	16	25	22	15°
800	32	260	16	25	22	15°
900	36	260	16	25	22	15°
1000	40	260	18	26	24	15°
1200	48	260	18	26	24	15°
1400	56	350	20	28	26	15°
1600	64	350	25	35	30	10°
1800	72	350	25	35	30	10°
2000	80	420	25	35	30	10°
2200	88	420	25	35	30	10°
2400	96	420	25	35	30	10°
2600	104	450	25	35	30	10°
2800	112	450	25	35	30	10°
3000	120	500	25	35	30	10°

The above data is standard specification, only for reference,
If you need more details, please contact us by clicking here

Our products have the following advantages: 1.The rubber is of regular origin with guaranteed quality. 2.The same product is made of the same rubber material.After vulcabuzation,the inner and outer rubber layers become a whole. 3.We can proovide the customers with samples for comparison with other manufacturers.

Food grade rubber joints:

This product is widely used in chemical industry, construction, water supply and drainage, petroleum, heavy and light industry,
refrigeration, sanitation, plumbing, fire protection, electric power and other basic engineering.According to different materials
can be made of acid resistance, alkali resistance, corrosion resistance, oil resistance, high temperature resistance, radiation
resistance, wear resistance, aging resistance and other varieties, to adapt to a variety of media and the environment.We can also
do pressure testing.

Classification of rubber joint

Concentric reducers

end face fully sealed

90 degree elbow

hand made

Handmade double spheres

With limit puller

limit rodsPTFElinner

union type

Counterclamp type

Packing & Delivery

Shipping:
1.FedEx/DHL/UPS/TNT for sample. Door-to-Door
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving
3.Customers specified freight forworders or negotiable shipping methods!

Delivery Time :
a.in stock:immediately b.sample:about 3 days c.OEM/ODM:about 15 DAYS

FAQ

Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight.

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.

Q: Do you accept small quantity order?
A: Of course we do.

Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity. Pls send your detailed needs in the below and get a quick reply!
