Product Details
Place of Origin: china
Brand Name: zhi cheng
Model Number: HY
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 12
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 9999

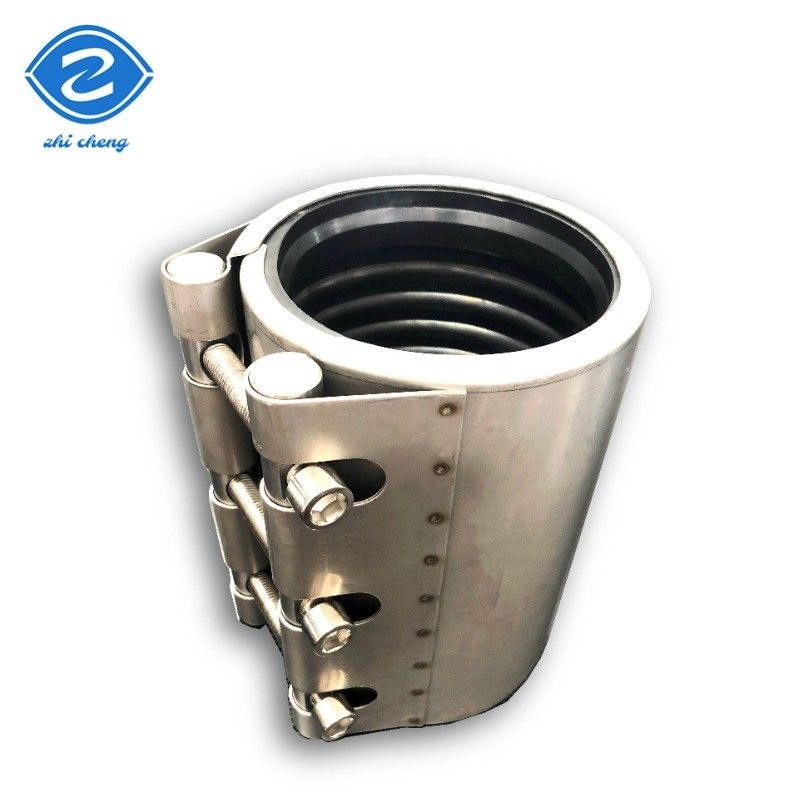

The pipeline repairer is a device used for pipeline repair, featuring robustness, corrosion
resistance, and no need for welding.
| 公称直径 Nominal Oianeter |
管径范围 Diameler Range of Pipes |
船舶公称 压力 |
工业允许压力 aRPatd et |
长度 Lenath |
螺栓 Bok |
螺栓扭矩 Bolt Targue |
|
| OD (mm | QDmin—ODmax(mm) | PN (bar) | WP (bar | S(mm) | L |
M | Nm |
| DN20 | 25 27 | 16 | 30 | 60 | 100 | 8 | 15 |
| DN25 | 32 34 | 16 | 30 | 60 | 100 | 8 | 15 |
| DN32 | 40 42 44.5 | 16 | 30 | 60 | 100 | 8 | 20 |
| DN40 | 48 54 | 16 | 30 | 60 | 100 | 8 | 20 |
| DN50 | 57 60 63 | 16 | 30 | 80 | 140 | 8 | 30 |
| DN65 | 76 | 14 | 28 | 80 | 140 | 8 | 30 |
| DN80 | 89 98 | 14 | 28 | 105 | 203 | 10 | 50 |
| DN100 | 108 110 114 118 | 14 | 25 | 105 | 203 | 12 | 50 |
| DN125 | 133140 | 14 | 25 | 115 | 203 | 14 | 80 |
| DN150 | 159 168 180 | 12 | 24 | 115 | 203 | 14 | 80 |
| DN200 | 219 222 225 200 | 8 | 16 | 155 | 255 | 14 | 100 |
| DN250 | 250 273 280 | 8 | 16 | 155 | 255 | 14 | 100 |
| DN300 | 315 325 | 7 | 14 | 155 | 255 | 14 | 100 |
| DN350 | 355 377 | 7 | 14 | 155 | 255 | 14 | 100 |
| DN400 | 406 426 429 | 6 | 12 | 155 | 255 | 14 | 120 |
| DN450 | 450 457 478 | 6 | 12 | 155 | 255 | 14 | 120 |
| DN500 | 508 529 532 500 | 5 | 10 | 155 | 255 | 14 | 120 |
FAQ
Q:Are you factory?
We are a factory in manufacturing and exporting expansion joint.
Being in the lines for nearly 30 years, we can confirm that our products are of
reasonable price and good quality .
Q:Why choose us?
1.Many years Industry and export experience
2.Extensive product range with good quality
3.Complete pre-sales ,after sales service team to ensure customer's needs and
preferences.
Q:How about application field?
1.the surface and underground engineering,ship building/sea oil platform,water/gas
supply,power and industrial production.
2.sewage treatment and maintenance etc.Such as Crude oil line,natural gas
pipelines,water drainage pipelines, aviation/car special line,lubricating oil pipelines
blunt water power line.
3.sea water/fresh water pipeline etc.
Q:What's your difference from others?
1.Produce per customer requirement strictly, test and quality control.
2.Universality:Avaliable for many kinds of metal pipes, and for less misaligned and
different diameter-pipes coupling, especially for emergency quick repair.
3.Economy:Coupling despite of the pipe thickness and no need furbishing of the
pipe ends, simple handing and cost-saving.
